0.5 tons of Double-stage reverse osmosis water treatment for Water Desalination Machine

Jingte 'er Environmental Protection Engineering Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

0.5 tons of Double-stage reverse osmosis water treatment for Water Desalination Machine

Brand Name : HYJB

Model Number : 0.5 tons double-stage

Place of Origin : Zhengzhou ,China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, T/T, Western Union, MoneyGram

Supply Ability : 200 sets /month

Delivery Time : 7 days

Packaging Details : wooden case

Power : 3000w

size : 1500*650*1700

weight : 250

voltage : 220/380v

Water Temp : 5-40°

Application : Mineral Water

Contact Now

0.5 tons of Double-stage reverse osmosis water treatment for Water Desalination Machine

Product Description

The two-stage reverse osmosis water treatment system adopts multi-media filter, activated carbon filter and security filter as the pre-processing stage, which effectively removes suspended solids, mud and sand, particles, organosilicon colloid, organic matter, odor, residual chlorine and other impurities in the raw water, so that the quality of the water after ion exchange treatment meets the requirements of industrial production. After the back-end of the fine treatment system (mixed-bed system), so that the quality of the produced water to meet the requirements of the production of water.

Parameter Table

Model
Water Making Ability
Inlet Caliber
Effluent Caliber
Blowdown alCer
Size(mm)
Power
YSRO-0.5T
0.5m3/h
DN20
DN20
DN15
1500×600×1500
1.3kw
YSRO-1T
1m3/h
DN25
DN25
DN20
1700×600×1500
2.1kw
YSRO-2T
2m3/h
DN32
DN25
DN20
2500×1000×1950
4.4kw
YSRO-3T
3m3/h
DN40
DN32
DN25
2500×1200×2150
4.5kw
YSRO-5T
5m3/h
DN50
DN40
DN32
2500×1350×2150
7.0kw
YSRO-8T
8m3/h
DN50
DN50
DN40
3500×1500×2150
11kw
YSRO-10T
10m3/h
DN50
DN50
DN40
3500×1600×2300
15kw

Key Advantage

Under the condition of no phase change at room temperature, solute and water can be separated, which is suitable for the separation and concentration of heat-sensitive substances, and has lower energy consumption compared with the separation method with phase change. Reverse osmosis membrane separation technology has a wide range of impurity removal. Higher desalination rate and water reuse rate, can retain solutes with a particle size of several nanometers or more. Utilizing low pressure as the membrane separation power, so the separation device is simple, easy to operate, maintain and self-control, site safety and hygiene.

Maintenance

In addition to the filter cartridge and filter housing, the piping is also an important part of the dual-stage reverse osmosis water equipment. After a long time of use, the internal pipeline will also accumulate dirt, affecting the effect of water purification.
Therefore, in the second level of maintenance, you need to check whether there is aging, leakage and other conditions of the pipeline, and targeted maintenance. Generally speaking, pipeline maintenance is recommended once a year.
Summarized, two-stage reverse osmosis water equipment, the second level of maintenance content mainly includes the replacement and cleaning of filter elements and filter shells, as well as pipeline inspection and maintenance. Users should be based on the actual situation and the use of equipment time to develop the appropriate maintenance program to ensure the normal operation of the equipment and extend the service life.

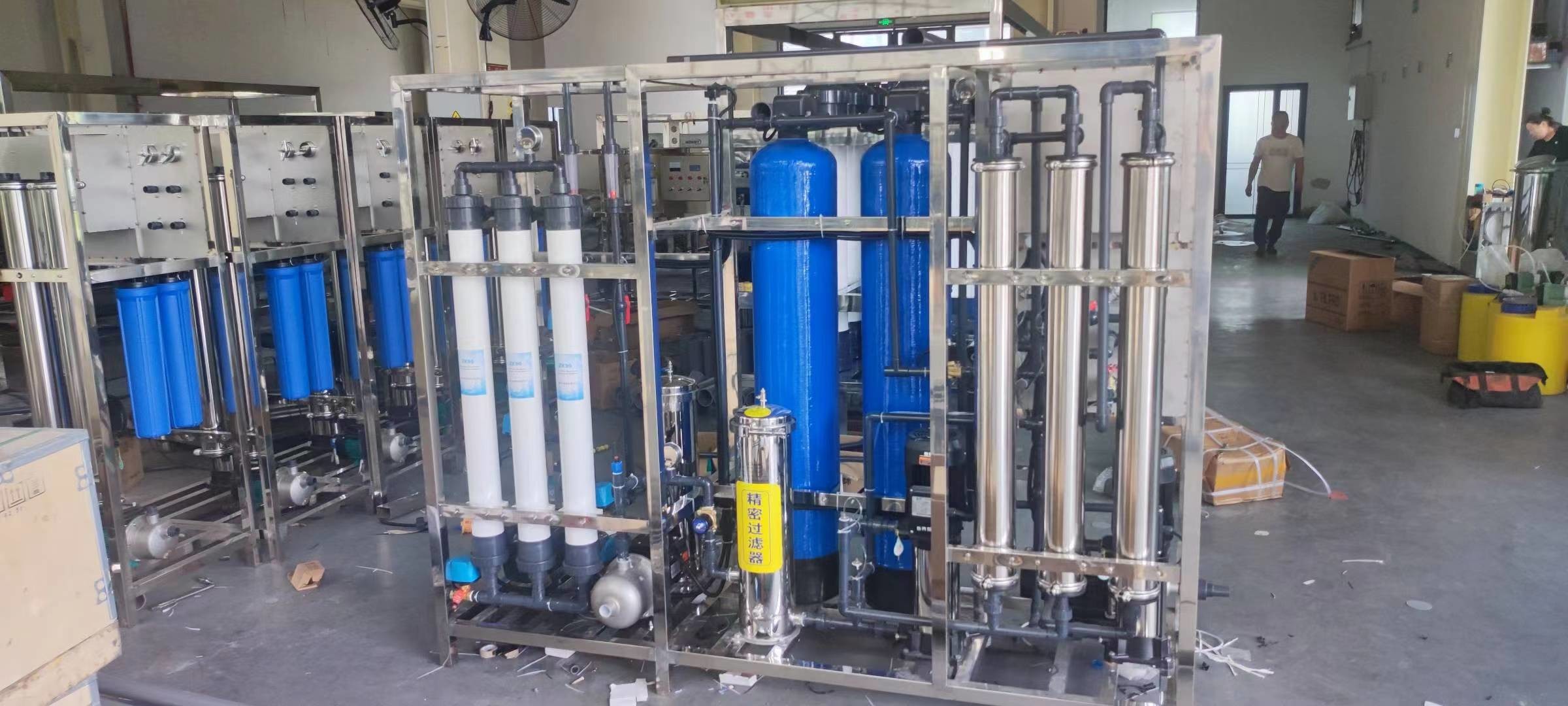

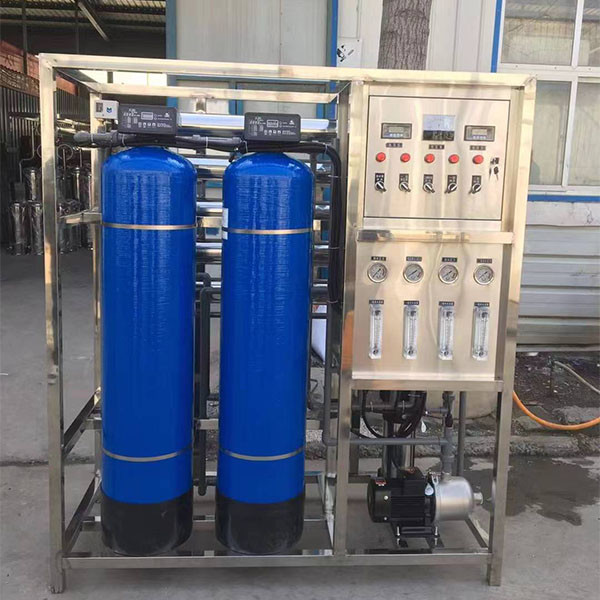

Product Display

0.5 tons of Double-stage reverse osmosis water treatment for Water Desalination Machine0.5 tons of Double-stage reverse osmosis water treatment for Water Desalination Machine0.5 tons of Double-stage reverse osmosis water treatment for Water Desalination Machine0.5 tons of Double-stage reverse osmosis water treatment for Water Desalination Machine
